Nylatron® 66 SA FST

Mitsubishi Chemical Advanced Materials’s Nylatron® 66 SA FST is a specifically designed polymer solution for aircraft interior applications.

Nylatron® 66 SA FR

This grade has been developed to fulfil the requirements as set out in the test program conducted on plastic materials to measure flammability characteristics.

Nylatron® 703XL PA6

This ultra-high performance bearing grade of PA6 provides wear resistance near the levels of Nylatron NSM PA6 with superior load bearing capability and an industry first - a near zero level of "stick-slip."

Nylatron® 4.6 PA46

Offers superior heat aging and creep resistance and retention of stiffness up to 300°F. It is reddish brown in color and used where PA 6, PA 66, POM and PET fall short.

Nylatron® MC 907 PA6

Unmodified type 6 nylon offering the highest strength and hardness of the nylon 6 grades. MC 907 natural is FDA, USDA and 3A-Dairy compliant.

Nylatron® MC901 HS PA6

Heat stabilized nylon offering long-term thermal stability to 260°F. It is blue in color and used in a variety of bearing and structural applications such as wheels, gears, and custom parts.

Nylatron® GSM PA6

Nylatron GSM PA6 contains finely divided particles of molybdenum disulphide (MoS2) to enhance its load bearing capabilities while maintaining the impact resistance inherent to nylon. It is the most commonly used grade for gears, sheaves, sprockets and custom parts. It is grey-black in color.

Nylatron® GSM Blue PA6

The first cast nylon to combine both molybdenum disulphid (MoS) and oil for the load capacity of Nylatron GSM PA6, plus improved frictional characteristics. It excels in higher pressures, and at low speeds-up to 40 fpm.

Nylatron® LIG PA6

Nylatron® LIG combines the toughness of cast PA6 with an oil-based lubricant that is encapsulated within the nylon matrix. It increases the load bearing performance of the material when compared to unfilled nylons and reduces the coefficient of friction. It is an ideal material for industrial application.

Nylatron® SLG-FDA PA6

Nylatron® SLG-FDA PA6 takes the performance of Nylatron® LIG PA6 and adds FDA compliance for appplications where food contact is possible. Food packaging and processing equipment users can now benefit from the benefits of this material.

Nylatron® 101 PA66

Of all the unmodified nylons, Nylatron® 101 PA66 is the strongest, most rigid and has one of the highest melting points. It is commonly specified for screw machined electrical insulators and food contact parts.

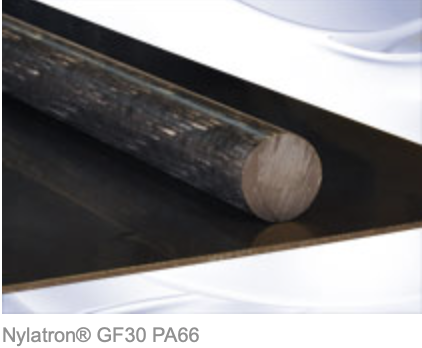

Nylatron® GF30 PA66

For applications requiring higher compressive strength and rigidity, 30% glass reinforced Nylon 6/6 is also available. It is stocked in diameters ranging from 10mm to 150mm (or .394" to 5.910" in meter lengths).

Nylatron® GS PA66

Molybdenum disulphide (MoS2) filled nylon offering improved strength and rigidity. With a lower coefficient of linear thermal expansion than Nylon 101, Nylatron GS parts maintain better fit and clearances, and have less tendency to seize as bearings.

Nylatron® GSM 12P

Nylatron® GSM 12P is Mitsubishi Chemical Advanced Materials's preferred material for use in piling hammers.

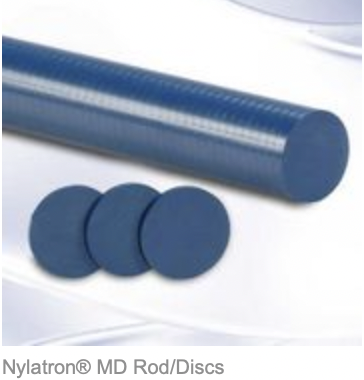

Nylatron® MD

This polyamide 6 grade, containing a metal detectable additive, has been specifically tailored for use in the food processing and packaging industries where it can easily be taced by the conventional metal detection systems installed to detect contamination of the foodstuffs (result may vary depending on the sensitivity of the metal detection system used).

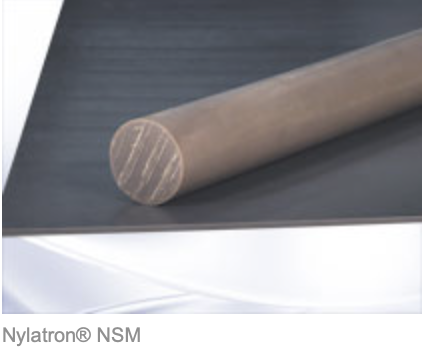

Nylatron® NSM

Developed specifically for demanding applications, Nylatron® NSM outperforms all other "premium" wear grade materials by far. Ideal for bearings and wear pads, Nylatron® NSM offers advantages beyond superior wear resistance at an affordable price.
